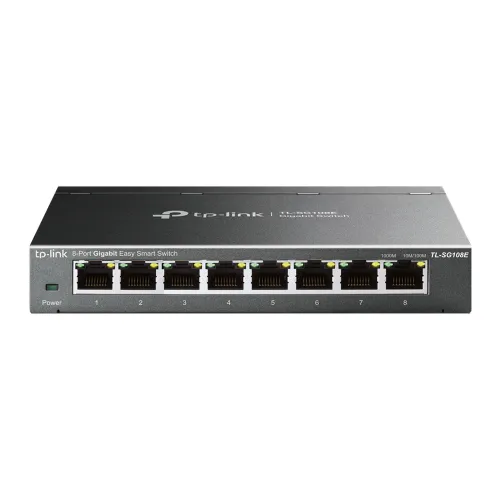

TP LINK 8-Port Gigabit Switch

HARDWARE FEATURES

• Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface 8 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity Fanless

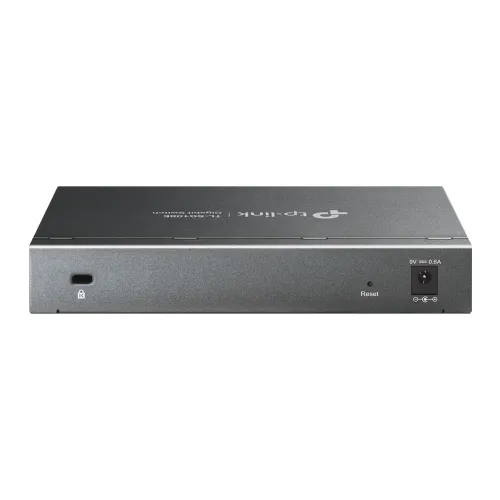

• Power Supply External Power Adapter(Output: 5 VDC/ 0.6 A)
• Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
• Max Power Consumption 3.68 W (220 V/ 50 Hz)
• Max Heat Dissipation 12.55 BTU/h

PERFORMANCE

• Switching Capacity 16 Gbps
• Packet Forwarding Rate 11.9 Mpps
• MAC Address Table 4 K
• Packet Buffer Memory 1.5 Mb
• Jumbo Frame 16 KB

SOFTWARE FEATURES

• Quality of Service Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
• L2 Features IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
• Transmission Method Store-And-Forward

OTHERS

• Certification FCC, CE, RoHS
• Package Contents TL-SG108E
• Power Adapter
• Installation Guide
• Rubber Feet
• System Requirements Microsoft® Windows® for running Utility
• Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
